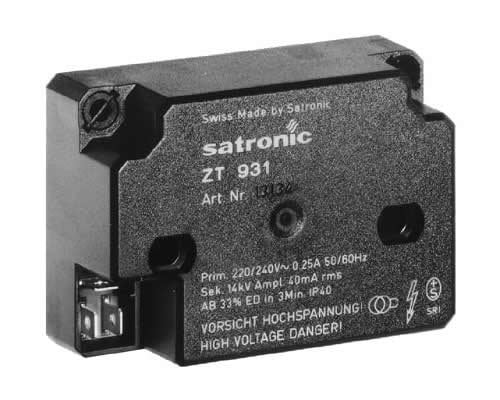

Satronic ZT 931 Ignitor 230V

SKU: C05017Y

£140.40 inc. VAT

Product features:

• Supply voltage 220 / 240V 50 Hz
• Connections: Live / neutral / earth 3 AMP plug type terminals 6.30 x 0.8 mm
• High tension ø 4 mm pin or ø 1 mm pin
• Primary current 0.25 A Rating Intermittent, 33 % E.D. in 3 minutes
• Interference level • Ignition voltage 1 x 14 kV
• Secondary current 40 mA rms
• Secondary frequency 20 kHz
• Spark gap 3 – 5 mm
• Ignition cable plug-in type
• Insulation standard IP 40
• Permissable ambient temperature -10° C… +60° C
• Mounting attitude any
• Weight 280 g

Product features:

• Supply voltage 220 / 240V 50 Hz
• Connections: Live / neutral / earth 3 AMP plug type terminals 6.30 x 0.8 mm
• High tension ø 4 mm pin or ø 1 mm pin
• Primary current 0.25 A Rating Intermittent, 33 % E.D. in 3 minutes
• Interference level • Ignition voltage 1 x 14 kV
• Secondary current 40 mA rms
• Secondary frequency 20 kHz
• Spark gap 3 – 5 mm
• Ignition cable plug-in type
• Insulation standard IP 40
• Permissable ambient temperature -10° C… +60° C
• Mounting attitude any
• Weight 280 g

Read moreless

Please allow a delay of 5-7 Days for this item.

Qty:

Description

The ZT 931 high frequency ignition transformer is suitable for use with power gas burners of unlimited rating. The ZT 931 enables a big spark deformation on burners witha high fire-rating or high combustion-air velocity. In addition to this, it generates the lowest electroMagnetic Interferrences of all known electronic ignition devices, which is especially important if the burner has to comply with EN 55014. The ZT 931 Combines a low power consumption with a low inrush current. The power connector is compatible with the widely used 3-wire connector.

Additional information

Download Technical Data Sheet
Brand

Satronic

Manufacturer Code

C05017Y
