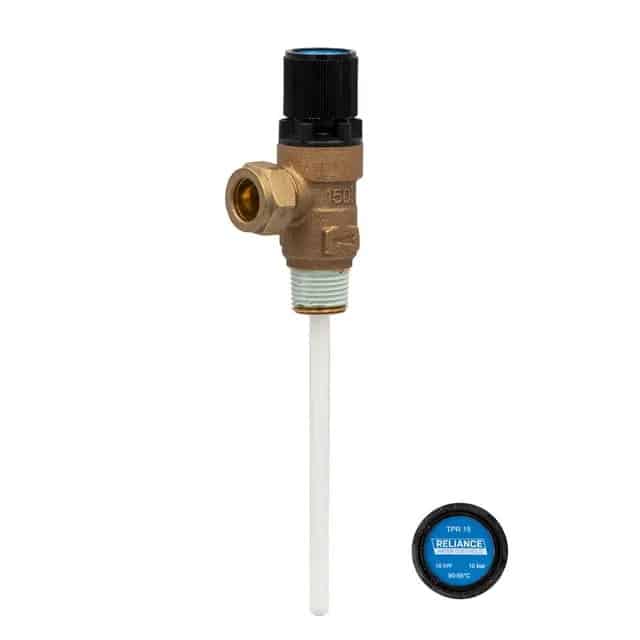

Reliance RWC TPR15 Pressure & Temperature Relief Valve 10 Bar PTEM550853

SKU: PTEM550853

£28.08 inc. VAT

Features & Benefits
• 1/2" MBSP threaded (Inlet) x 15mm compression (Outlet) connections
• Cartridge construction provides long life span and service of the valve
• Probe Length: 95mm
• WRAS Approved

Features & Benefits
• 1/2" MBSP threaded (Inlet) x 15mm compression (Outlet) connections
• Cartridge construction provides long life span and service of the valve
• Probe Length: 95mm
• WRAS Approved

Qty:

Description

The Reliance Pressure and Temperature Relief Valve has been designed to provide protection against over pressurization, which can occur within an Unvented Hot Water system if the input temperature controls fail. The valve is designed to be fitted in the upper portion of the cylinder as this is where the hottest system temperatures will be found. If the system temperature rises beyond 95°C, the wax mixture within the element of the temperature probe will expand, causing the valve to lift off its seat and relieve water to waste. If the water pressure increases (without temperature increase) the valve will stay closed until the set pressure of the relief mechanism is reached, at which point the valve will open to relieve the excess pressure build-up.

Additional information

Download Technical Data Sheet
Brand
Manufacturer Code

PTEM550853
