Description

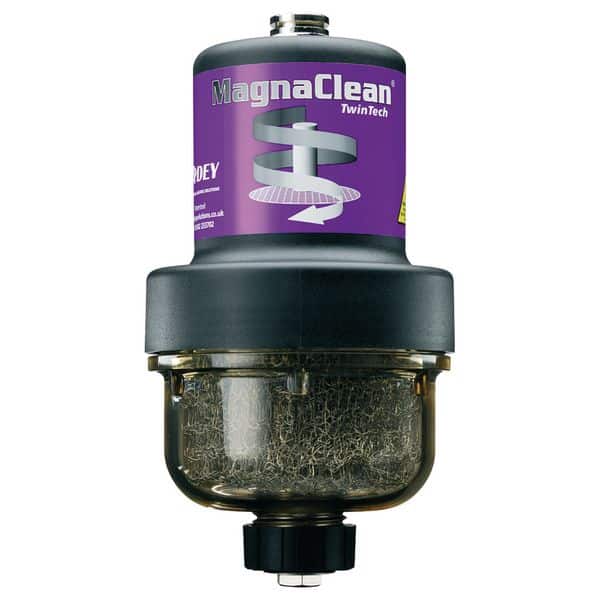

In central heating systems that have underfloor heating or renewable heating systems using heat pumps, capturing magnetite is one thing, but there’s other debris to deal with too. We’ve created MagnaClean TwinTech to handle both. Its high-performance magnet takes care of magnetite, while its fine wire gauze traps non-magnetic and biological films that can build up in these lower temperature systems.
Please always refer to the manufacturer’s instructions for the correct application. All parts should be fitted by a qualified plumber.
We know you’re busy and need to get repair jobs done quickly and efficiently. Our experts are waiting to help you with your plumbing, heating, or bathroom project. UK Plumbing is the UK’s favourite supplier of plumbing and heating materials. We strongly value trust, reliability and always deliver excellent service for a fair price.
Canister and lid
• Material: Glass fibre reinforced nylon
• Fluid capacity: 340 ml (chemical bowl)
• Inlet diameter: 22 mm at the valve
• Outlet diameter: 22 mm at the valve
• Thread: Pressure thread
• Flow configuration: Flow must enter the bottom port and exit the top port
Magnet
• Housing: Stainless steel
• Length: 150 mm
• Diameter: 25 mm
Bleed valve
• Body material: Nickel plated brass
• Screw: Nickel plated brass
• Retainer: Nickel-plated brass
• Ball: Stainless steel
• Spring: Stainless steel
• Outer hex: 22 mm
Triple seal valve
• Body material: Nickel plated brass
• Seals material: Long-life PTFE ball seals
• O ring material: Nitrile 70
• Valve inlet/outlet: 22 mm
Servicing Clearance
• Air vent (top): 50 mm
• From magnet cap (bottom): 95 mm
Wire gauze
• Material: Stainless steel
• Diameter: Approximately 90 mm
