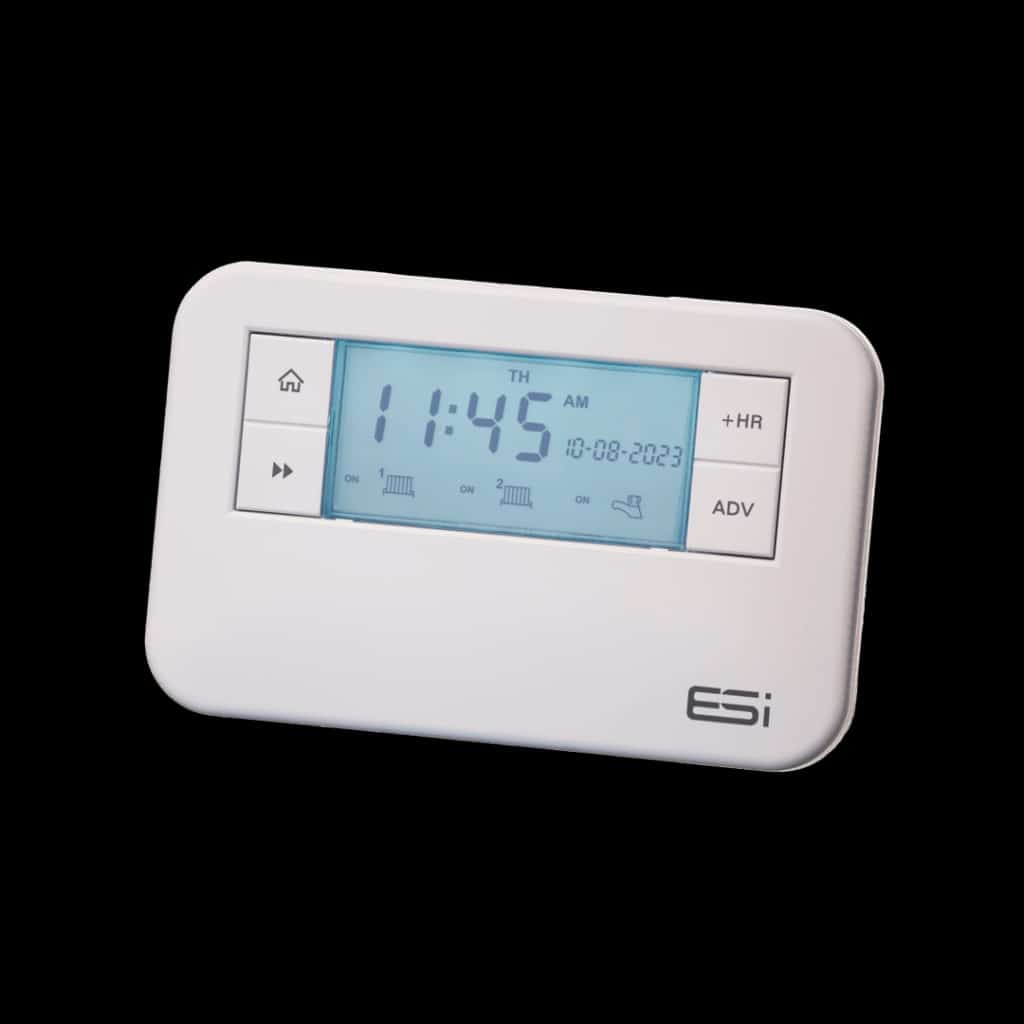

ESI Single channel time switch

SKU: 13110010

£46.36 inc. VAT

•1 channel programmer ES1247B
•Independent time control channels 1
•Power supply 230V AC, 50Hz
•Operating temperature 0°C to 35°C
•Total switch rating 230V AC, 6(2)A (Total)
•Contact type 1B , Micro disconnection (Voltage free)
•Battery type Lithium Cell CR2032
•Enclosure Protection: IP30 Plastics Thermoplastic, flame retardant
•Insulation class Double
•Wiring For fixed wiring only
•Backplate Industry standard Dimensions 140mm x 90mm x 30mm
•Clock 12 hour am/pm, 1 minute resolution
•BST/GMT time change Automatic
•Program cycle 24hr, 5/2 day or 7 day selectable
•Program on/offs per day 2 on/offs, 3 on/offs selectable
•Program selection Auto, on all day, on constant, off
•Program override +1, 2 or 3Hr, advance
•Heating system Pumped
•Complies with EN60730-1, EN60730-2.7, EMC Directive 2004/108/EC, LVD Directive 2006/95/EC

•1 channel programmer ES1247B
•Independent time control channels 1
•Power supply 230V AC, 50Hz
•Operating temperature 0°C to 35°C
•Total switch rating 230V AC, 6(2)A (Total)
•Contact type 1B , Micro disconnection (Voltage free)
•Battery type Lithium Cell CR2032
•Enclosure Protection: IP30 Plastics Thermoplastic, flame retardant
•Insulation class Double
•Wiring For fixed wiring only
•Backplate Industry standard Dimensions 140mm x 90mm x 30mm
•Clock 12 hour am/pm, 1 minute resolution
•BST/GMT time change Automatic
•Program cycle 24hr, 5/2 day or 7 day selectable
•Program on/offs per day 2 on/offs, 3 on/offs selectable
•Program selection Auto, on all day, on constant, off
•Program override +1, 2 or 3Hr, advance
•Heating system Pumped
•Complies with EN60730-1, EN60730-2.7, EMC Directive 2004/108/EC, LVD Directive 2006/95/EC

Read moreless
Qty:

Description

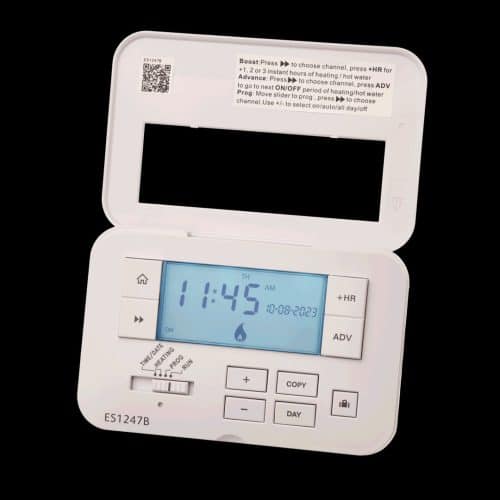

Our ES1247B is a single channel electronic time switch which provides an easy to install solution to control your central heating, also available as a 16A time switch to control immersion heaters

Additional information

Download Technical Data Sheet
Brand

ESI Controls

Manufacturer Code

ES1246B
