EPH Controls S Plan Heating Control Pack

£201.60£232.20 inc. VAT

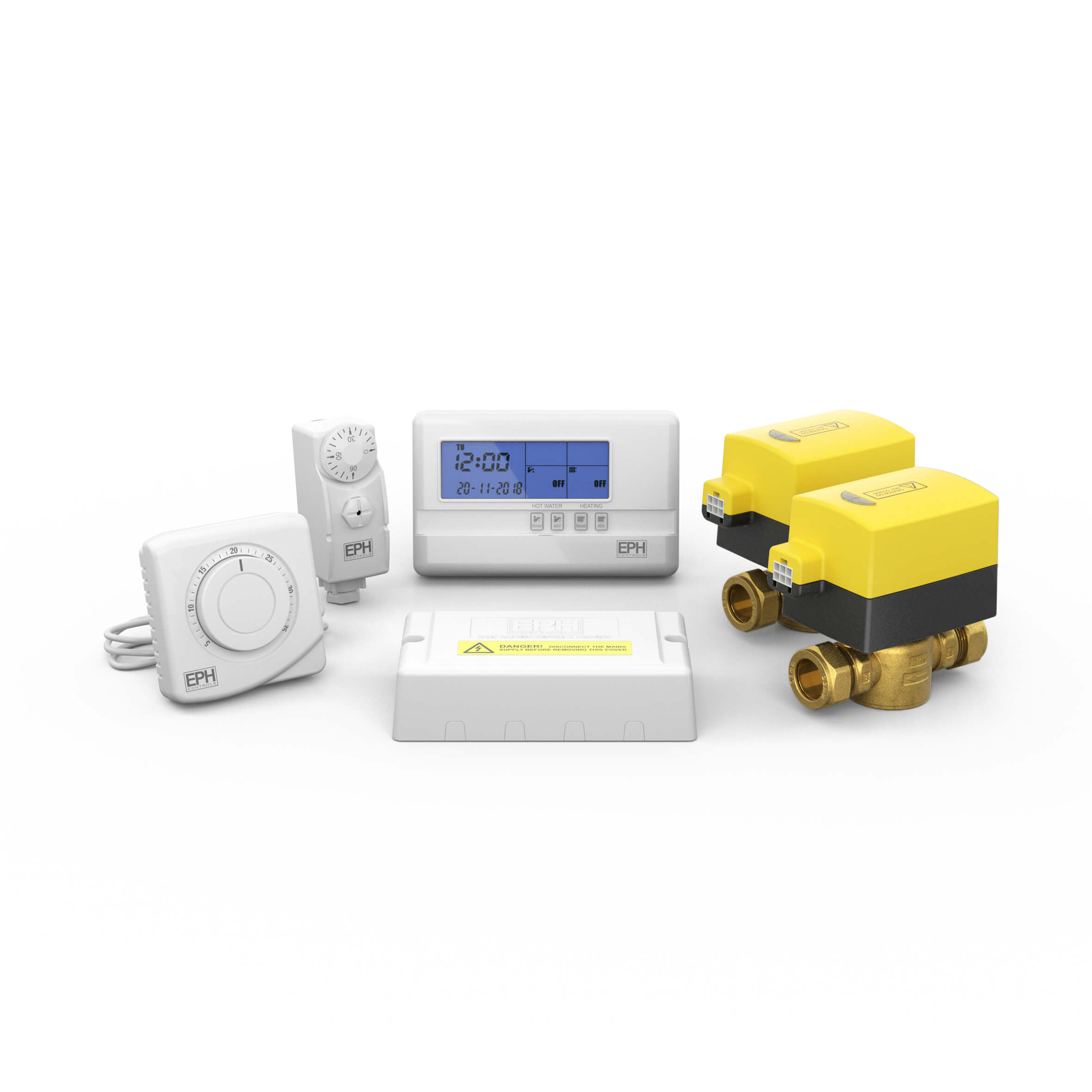

S plan control pack comprising of 1 no. 2 channel programmer, 2 no. 2 port motorised valves, 1 no. room thermostat, 1 no. pipe/cylinder thermostat and a wiring centre. Also options for unvented cylinders.

Please always refer to the manufacturer’s instructions for the correct application. All parts should be fitted by a qualified plumber.

We know you’re busy and need to get repair jobs done quickly and efficiently. Our experts are waiting to help you with your plumbing, heating, or bathroom project. UK Plumbing is the UK’s favourite supplier of plumbing and heating materials. We strongly value trust, reliability and always deliver excellent service for a fair price.

Product features:

2 Port motorised valve
• 22 or 28mm Compression
• On / Off Indicator
• Detachable cable

2 channel programmer
• 3(1)A 230Vac switch rating
• 0-50°C ambient temperature range
• 3 per day operating periods
• 6 pin backplate

Room thermostat
• 10(3)A 230 & 24Vac
• No anticipator
• No indicator light

Cylinder thermostat
• 16(4)A 230Vac
• SPDT contact type
• 0-90° Temperature range
• IP20 Rated
• ±5°C switching differential

Wiring Centre
• 12 Terminals

Additional information


EPH Controls


22mm, 28mm

Manufacturer Code

CR222P, CR228P
