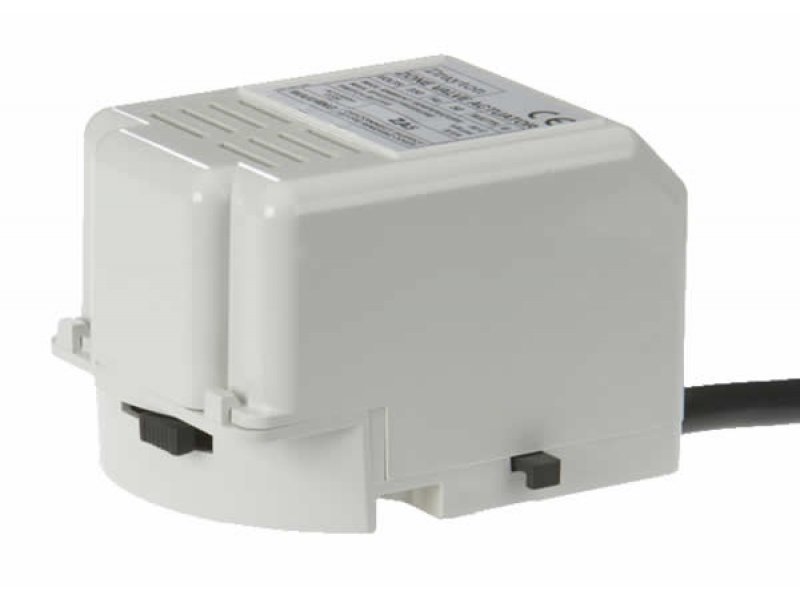

Drayton ZA3 Zone Valve Actuator Only

SKU: 27652

£71.96 inc. VAT

Product features:

• Standard motor voltage 230V a.c. 5 watts
• Valve operation 2 Port: Standard valves energise to open
Diverter: Energise to open port A
Mid-position: Heating, hot water or a Combination of both
• Operating time 2 Port: Motor 14 secs., spring return 6 secs.
Diverter: Motor 12 secs., spring return 6 secs.
• Max. static pressure 8.6 bar
• Max. differential pressure 0.7 bar
• Water temperature 93°C max., 2°C min
• Max. ambient temperature 52°C
• Valve body Brass forging
• Connections 22mm compression;
28mm compression
• Lead length 1 Metre
• Switch ratings 24v 230V a.c. 3(1)A

Product features:

• Standard motor voltage 230V a.c. 5 watts
• Valve operation 2 Port: Standard valves energise to open
Diverter: Energise to open port A
Mid-position: Heating, hot water or a Combination of both
• Operating time 2 Port: Motor 14 secs., spring return 6 secs.
Diverter: Motor 12 secs., spring return 6 secs.
• Max. static pressure 8.6 bar
• Max. differential pressure 0.7 bar
• Water temperature 93°C max., 2°C min
• Max. ambient temperature 52°C
• Valve body Brass forging
• Connections 22mm compression;
28mm compression
• Lead length 1 Metre
• Switch ratings 24v 230V a.c. 3(1)A

Read moreless
Qty:

You may also like…

Description

The Drayton 2 port, diverter and mid-position
valves are available in 22mm and 28mm.
All models feature snap-on actuators and have
industry-standard wiring and dimensions.

Additional information

Brand

Drayton

Manufacturer Code

27652
