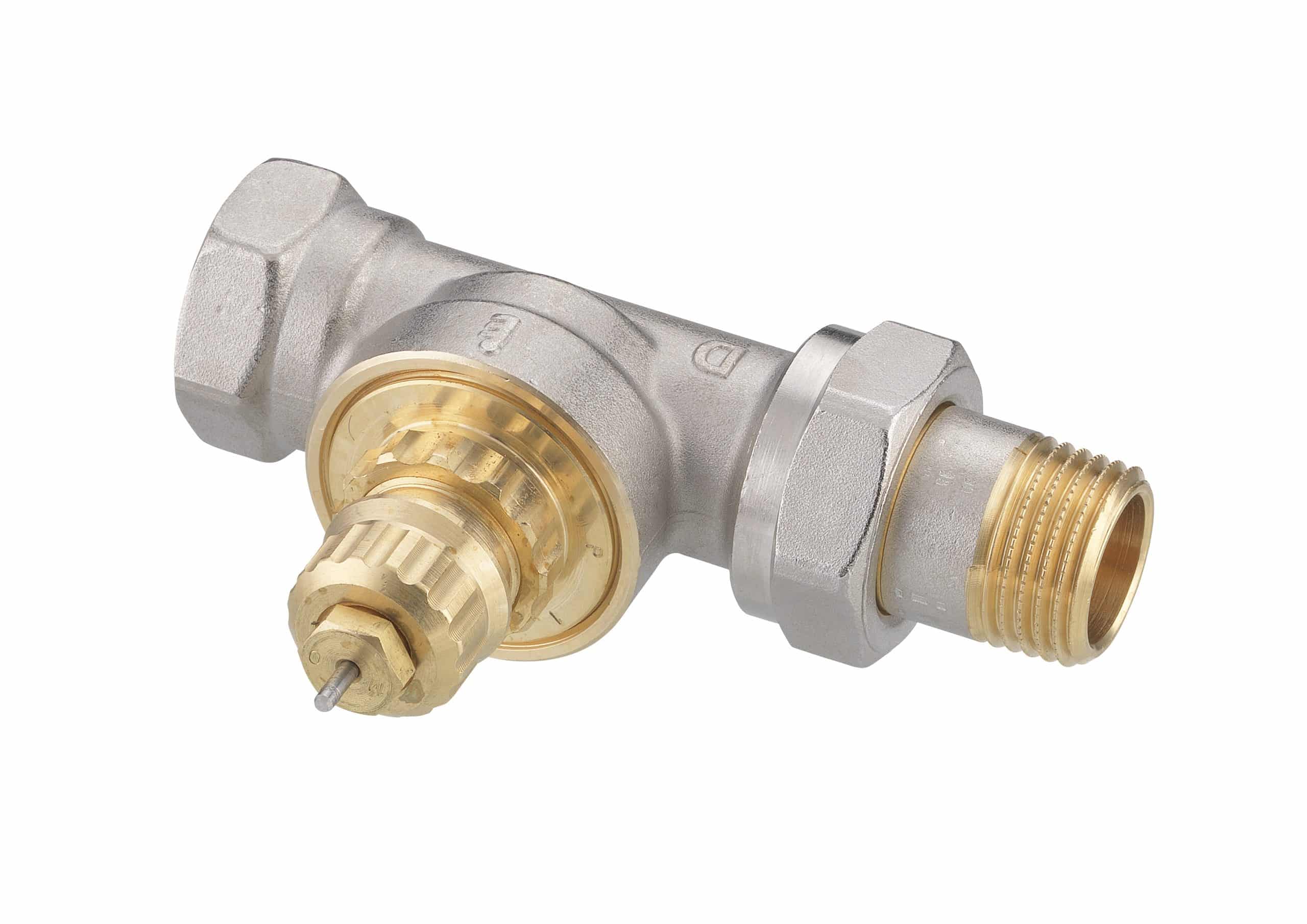

Danfoss TRV Valve Body type RA-G for 1 pipe systems

£53.31£76.51 inc. VAT

•Approved to European standard EN 215
•2 year warranty

•Approved to European standard EN 215
•2 year warranty



Designed for conventional one-pipe heating systems with thermosiphon operation, the Danfoss RA-G radiator valve is a high-capacity, low-resistance valve with large diameter valve cones for high capacities at low proportional offsets. This ensures that comfortable temperatures are maintained under all load conditions. This valve incorporates a gland-seal assembly that can be replaced without specialised tools and with no requirement to drain down

Additional information

Download Technical Data Sheet



RA-G15 – ½" Straight pipe valve, RA-G15 – ½” Vertical Angle 1 pipe valve, RA-G20 – ¾" Straight pipe valve, RA-G20 – ¾” Vertical Angle 1 pipe valve, RA-G25 – 1" Straight pipe valve, RA-G25 – 1” Vertical Angle 1 pipe valve

Manufacturer Code

013G1675, 013G1676, 013G1677, 013G1678, 013G1679, 013G1680
